  • Dhatri Infrastructure (P) Ltd. Flat sliding bearings

    If no angular rotations can occur this type is mostly recommended.

    • Type TP without counter-plate
    • Type G with counter-plate
  • Dhatri Infrastructure (P) Ltd. Spherical bearings

    Spherical bearings are characterized by low assembly height and restraint free design. Permissible angle of rotation axy is 13%.

    If angular rotations can occur during the assembly phase but not in operation spherical bearings type K11 / K12 (one PTFE pad only) can be used.

    In case of possible angular rotations during operation second PTFE pad in the spherical part must be used, this is type K21 / K22.

    The fixed spherical bearing type KF can only cover angular and rotational movem ents.

  • Dhatri Infrastructure (P) Ltd. Pointed rocker bearings

    Pointed rocker bearings have the advantage of high applicable loads with at the same time small junction area. Permissible angle of rotation axy is 13.

    If angular and rotational movements occur at the same time fixed bearings type PF are to be used. In case of additional horizontal displacements the pointed sliding bearing type PK1 / PK2 should be used.

  • Dhatri Infrastructure (P) Ltd. Special type bearings

    For lift - off loads, tempor arily fixings, adjustable heights and many other cases and applications we can design and produce special tailor made solutions. Please do not hesitate to contact us!

  • Dhatri Infrastructure (P) Ltd. High temperature bearings

    For connection temperatures up to 550°C nearly all bearings types can be combined with a thermal separation type TT in sandwich design.

  • Dhatri Infrastructure (P) Ltd. Roller bearings

About Our Company

Dhatri Infrastructure (P) Ltd.

Dhatri lnfastructure offers sliding bearings under technical partnership with PG Systemtechnik GmbH & Co. KG, Germany, whose employees have know-how and experience of more than 20 years in design, manufacturing and sales of sliding bearings globaly.

Many such projects in Germany, Europe and worldwide have been supplied successfully till date.

We cover the whole range of design and supply of PTFE sliding bearings for power plants, pipe constructions and civil engineering.

The fully refurbished line of PGslideŽ bearing technology comes with following advantages:

  • Maximum load up to 30.000 KN
  • Temperatures up to 550°C

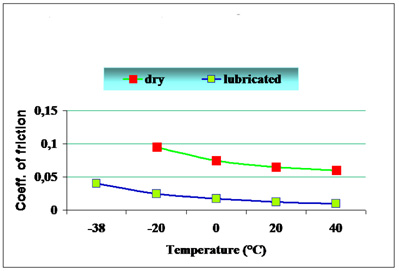

  • Very low coefficient of friction (for PTFE refer chart)
  • Optimized design: small, universally connectable, cost efficient
  • Full service including design, manufacturing and assembly of bearings
